t bend - Mandrel bending machines with servo-hydraulic motors for guaranteed extraordinary bending quality.
Energy savings up to 70% by control of the hydraulic pump via a servo motor.- Typical bend time for a 4-bend wall rail is less than 2 minutes
- Bends steel, stainless steel and aluminum
- Bends to the same radius as purchased elbows, so when an elbow is still required, the bends look exactly the same
- Accuracy and repeatability allow for the rail to be used as a template, greatly reducing layout time on the bench
Explore our machine virtually
Move the slider and click the info points for more information.
The right machine for your task
Product video
Experience in 3D

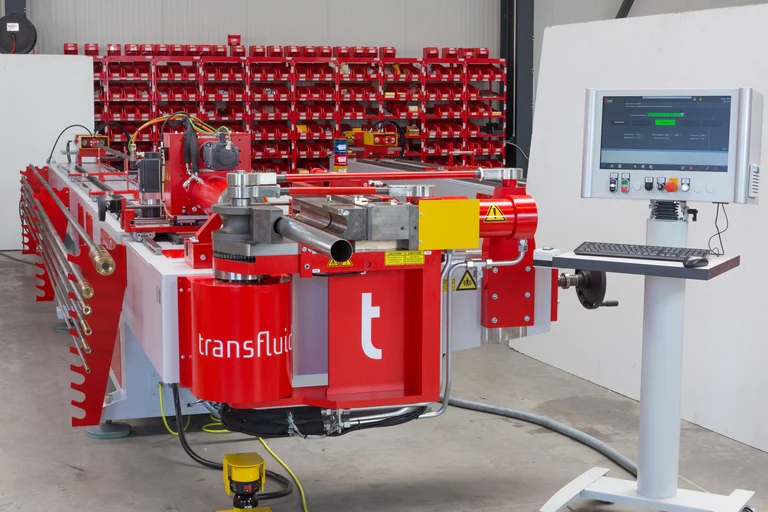

MANDREL BENDING MACHINES Hydraulic with CNC-Control
| Range | 6–42 mm |
| Max. capacity | 42 x 4 mm (mild steel) 42 x 3 mm (stainless steel) 25 x 2,5 mm (square mild steel) |
| Max. Radii | 126 mm |
| Usable length | 4572 mm 6096 mm (special) |
| Speed of bending axis | 75 °/sec. |
| Range | 6-60 mm |
| Max. capacity | 60,3 x 5 mm (mild steel) 60,3 x 3 mm (stainless steel) 40 x 3 mm (square mild steel) |
| Max. Radii | 180 mm |
| Usable length | 4572 mm 6096 mm (standard) |
| Speed of bending axis | 35 °/sec. |
| Range | 6-88,9 mm |
| Max. capacity | 88,9 x 5 mm (mild steel) 88,9 x 3 mm (stainless steel) 50 x 2,5 mm (square mild steel) |
| Max. Radii | 270 mm |
| Usable length | 4572 mm (standard) 6096 mm (special) |
| Speed of bending axis | 21°/sec. |
| Range | 20 - 120 mm |
| Max. capacity | 120 x 4,5 mm (mild steel) 120 x 3,2 mm (stainless steel) on request (square mild steel) |
| Max. Radii | 360 mm |
| Usable length | 6096 mm (standard) |
| Speed of bending axis | 15 °/sec. |
| Range | 40-140 mm |
| Max. capacity | 140 x 6 mm (mild steel) 140 x 4 mm (stainless steel) on request (square mild steel) |
| Max. Radii | 420 mm |
| Usable length | 6096 mm (standard) |
| Speed of bending axis | 10 °/sec. |
| Range | 40-170 mm |
| Max. capacity | 170 x 8 mm (mild steel) 170 x 6 mm (stainless steel) on request (square mild steel) |
| Max. Radii | 510 mm |
| Usable length | 6096 mm (standard) |
| Speed of bending axis | 7 °/sec. |
| Range | 40-220 mm |
| Max. capacity | 220 x 12 mm (mild steel) 220 x 10 mm (stainless steel) on request (square mild steel) |
| Max. Radii | 700 mm |
| Usable length | 6096 mm |
| Speed of bending axis | 5 °/sec. |
| Range | 60-273 mm |
| Max. capacity | 273 x 16 mm (mild steel) 273 x 14 mm (stainless steel) on request (square mild steel) |
| Max. Radii | 820 mm |
| Usable length | 6096 mm |
| Speed of bending axis | 3 °/sec. |
| Range | 80-325 mm |
| Max. capacity | 325 x 20 mm (mild steel) 325 x 18 mm (stainless steel) on request (square mild steel) |
| Max. Radii | 975 mm |
| Usable length | 6096 mm |
| Speed of bending axis | 3 °/sec. |
Your benefits at a glance
-
MULTILEVEL BENDING

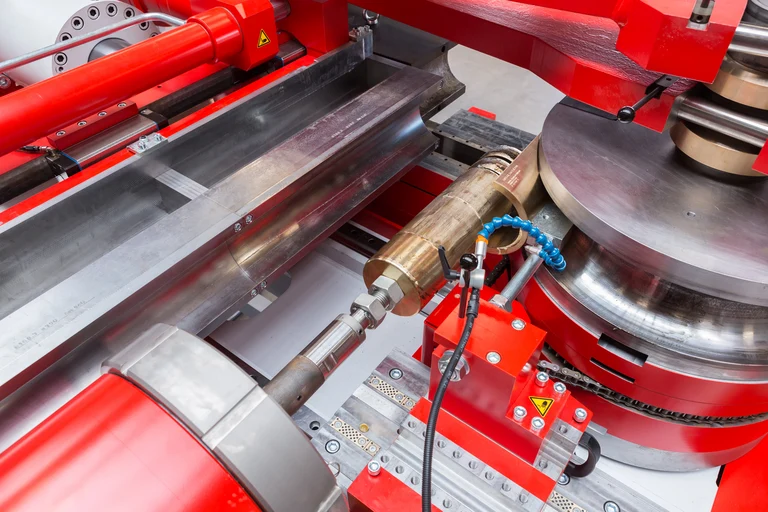

Each bending head can be equipped with minimum two tool sets, e.g. with different bending radii or form-clamps, max. changing height for standard machine is 60 mm.
Bending tools for tubes with already formed tube ends.
-

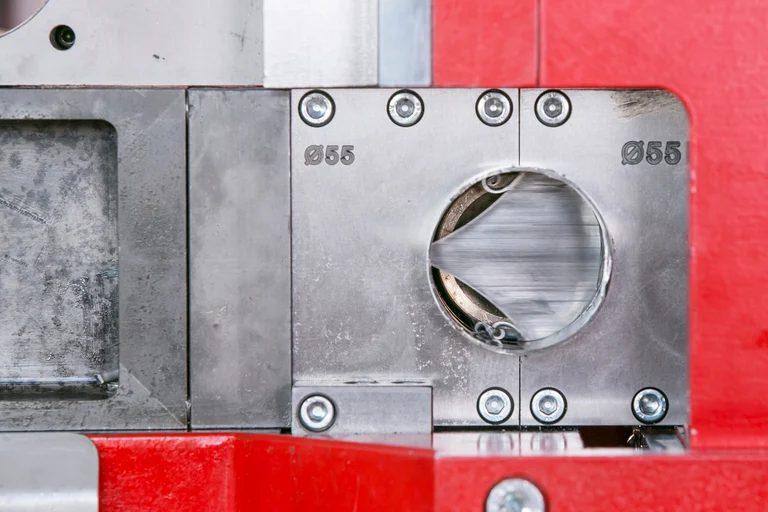

CUTTING DURING BENDING PROZESS
The separation cut is made directly after the last bend. No further re-cutting is necessary.
-
SOLID MATERIAL
Adaptation of the bending machine for bending busbars/ conductor rails/ flat conductors.
-

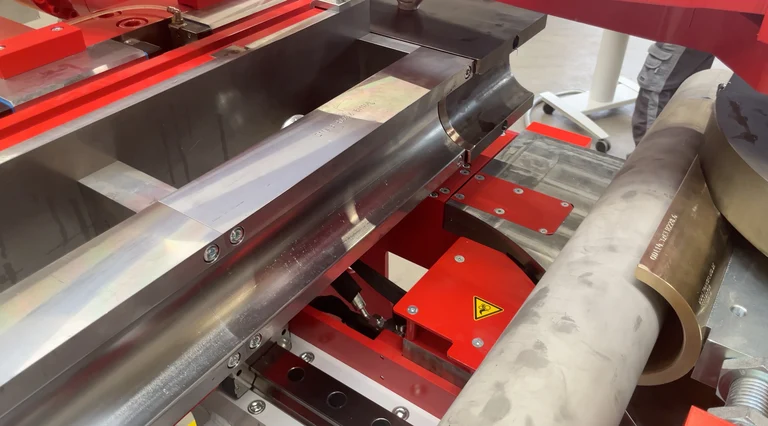

BENDING MANDRELS
Bending mandrels in different contours or materials.
-

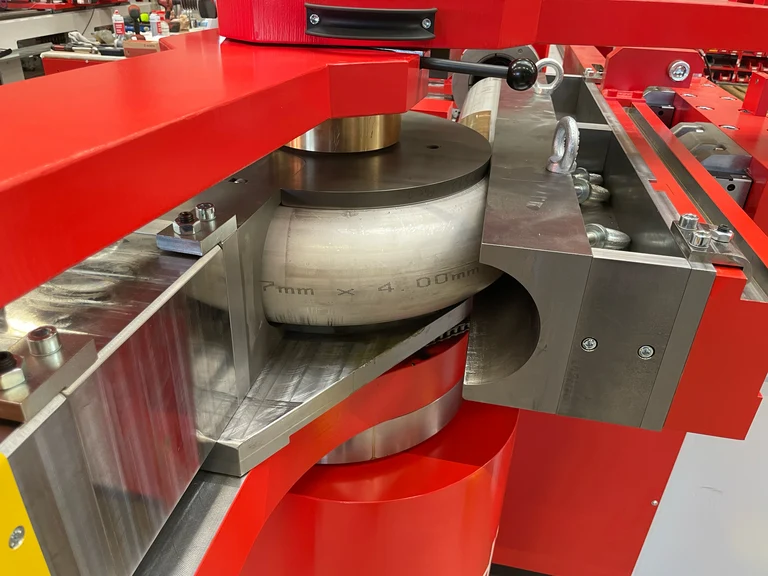

WIPER DIE
Prevents the deformation in the form of wrinkles that occurs when the material exceeds its elastic limit and sets in the curve.
-
Time- and cost-saving
Fast set-up times due to swivel bridge, plugged tools and bayonet lock for the collet chuck.
-

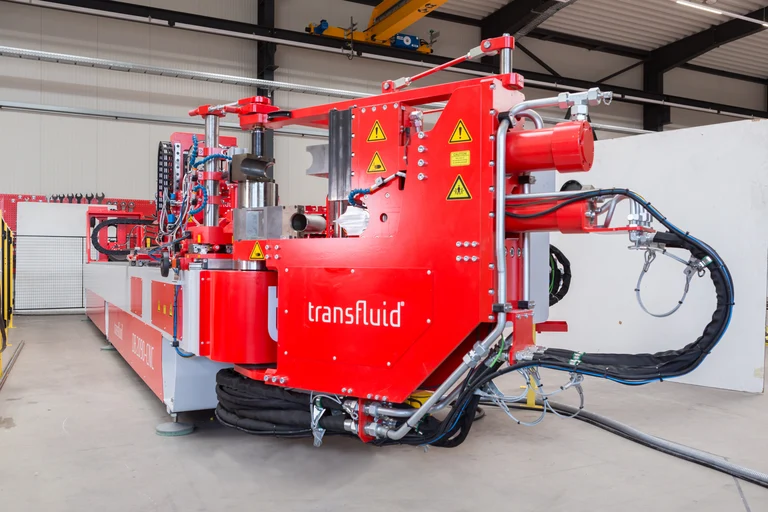

Solid welded construction
Very durable machine design.

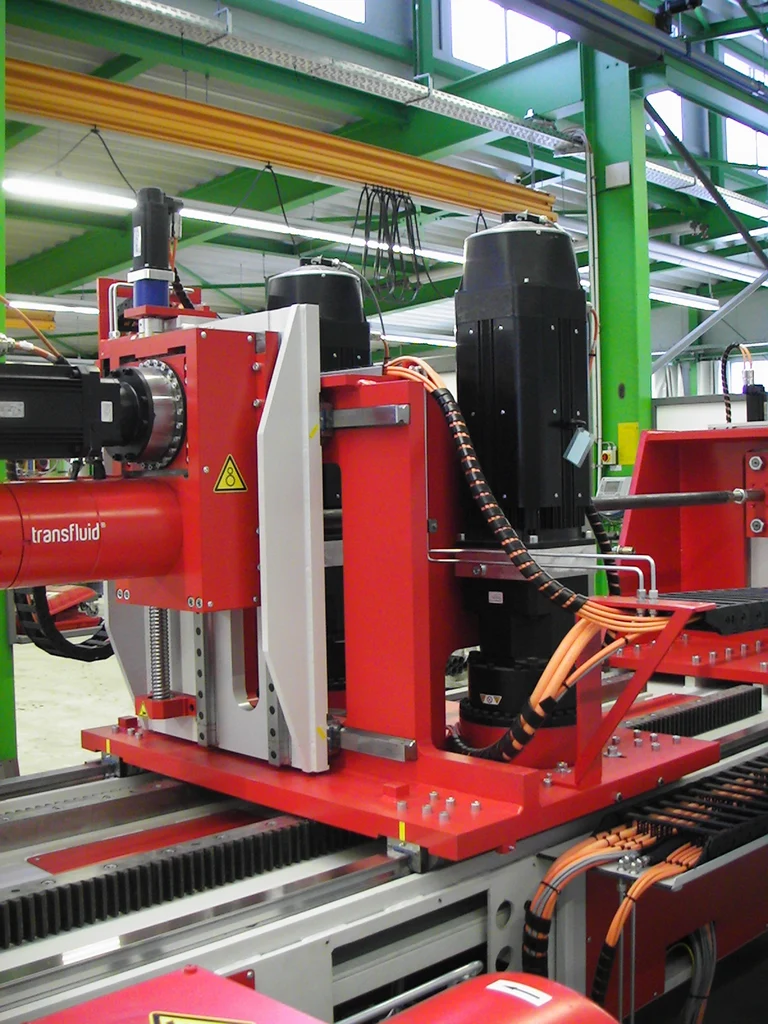

INNOVATIVE SERVO-HYDRAULIC SYSTEM
• Energy savings up to 70% by control of the hydraulic pump via a servo motor.
• On demand system only runs when hydraulic pressure is required; reducing the overall duty cycle and increasing lifecycle of all hydraulic components.
• Speed and volume of the pump can be precisely adjusted as required.
• Pressure is programmable and stored with program, eliminating operator intervention.
• Heating of the oil eliminated, therefore no additional cooling unit for the oil is necessary.
• The pumps and motors can be specified to a smaller size precisely for the application, which increases efficiency.
Catalog Download
transfluid® offers the complete package for the production of tubing.
Download our new catalogue.
