t form - Type UMR rollforming machines produces perfect and mirror-like sealing surfaces
For the production of 37°, 45°, 90° and ORFS flanging- Extremely short clamping lengths (from 1xD)
- Simple, fast and easily accessible tool change
- Feeding of ORFS o-rings
- Easy visualization via touch panel
Faster pipe end forming and better surfaces
t form UMR forming machine from transfluid with easy tool change and minimized operator input
The right machine for your task
Product video
UMR ROLLFORMING MACHINES
| Max. capacity | 6 - 28 mm |
| Wall thickness | 2,5 mm |
| Steel pipe | 12,9 - 26,2 mm |
| RPM | 603 |
| Cycle time adjustable | 4 - 10 sec. |
| Forming length | 15 mm |
| Clamping length | 1,0 x D |
| Power | 1,3 kW |
| Weight | 500 kg |
| L x W x H | 39 x 26 x 55 mm |
| Max. capacity | 6 - 42 mm |
| Wall thickness | 4,0 mm |
| Steel pipe | 12,9 - 26,2 mm |
| RPM | 200 |
| Cycle time adjustable | 4 - 15 Sec. |
| Forming length | 25 mm |
| Clamping length | 1,0 x D |
| Power | 4,5 kW |
| Weight | 1000 kg |
| L x W x H | 1000 x 650 x 1400 mm |
| Max. capacity | 30 - 115 mm |
| Wall thickness | 4,0 mm |
| Steel pipe | 41,5 - 112,6 mm |
| RPM | 170 |
| Cycle time adjustable | 10 - 45 sec. |
| Forming length | 50 mm |
| Clamping length | 1,0 x D |
| Power | 8,5 kW |
| Weight | 1500 kg |
| L x W x H | 1400 x 1000 x 1800 mm |
Your benefits at a glance
-
EXTREMLY SHORT CLAMPING LENGTH

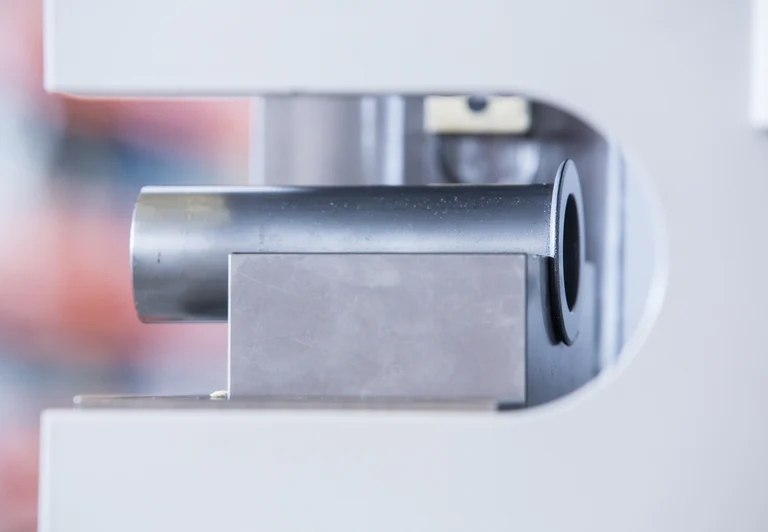

The possible clamping lengths for machining are 1 to 1.5 x the tube diameter. This gives the user the possibility to always perform the forming after the bending process.
-
PERFECT SEALING SURFACES
Feeding and specially contoured clamping jaws for ORFS rings.
-
OPTIMIZED MACHINE DESIGN
The extremely narrow workhead makes retrograde 180° bend possible. The size of the flare can be determined with the length of the electric length stop. Adjusting the duration, speed and the power of the forming optimizes the surface.
-
EASY CONTROL VIA TOUCH PANEL
Setting of all parameters centrally in the machine control system, controlled positioning of the forming axis and the stop position.
-
FLEXIBLE AND VERSATELITE FORMING
One machine for the production of 37°, 45°, 90° and ORFS flanging.
-
TRANSFORMATIONS WITH FUNCTIONAL SURFACES
In addition to rolling from the inside out, these systems can also form from the outside in.
-
INTEGRATED TOOL DRAWER
For safe storage of the clamping jaws and tumbling tools.
INCORRECT PARTS IMPOSSIBLE!
ORFS CONNECTIONS MANUFACTURED SEMI-AUTOMATICALLY
With the semi-automatic ORFS ring feeder, transfluid has developed a cost-effective solution for the safe and effective production of small, medium and even large batch sizes.
PREPARED FOR INTEGRATION INTO PRODUCTION CELLS
This series will win you over with its special stability and performance. Individual pieces and small series can be produced in an extremely economical manner with this machine concept. The use of high-value components ensures the machine‘s durability.
EASY CONTROL VIA TOUCH PANEL
Setting of all parameters centrally in the machine control system, controlled positioning of the forming axis and the stop position.
The UMR is equipped with a completely electronic preselection of the flanging geometry. The stop position and all strokes and machining operations are servo-electrically controlled and can be called up via a touch panel.
Decisive for the exact machining time is which material is used and which shaping is to be implemented. The machine carries out the processing quasi automatically if it is possible to call up the tube size with the necessary process parameters. In individual cases, the clamping lengths for machining are 1 to 1.5 x the pipe diameter.
Our new generation of t form UMR 628, 642 and 30115 machines reduces the set-up time when changing the tools and the operator can set up the machine in less than three minutes.
The solution for any geometry with outstanding sealing surfaces
Tailored to your individual requirements and needs, we create optimal solutions with our expertise.
